LRP iX8 ESC & USB adaptor

LRP iX8 ESC ve USB adaptorunun tanitimini yapti... iX8 brushless sensorlu motorlar icin kullanilabilecek. 2s`den 6S`e kadar destekliyor.





Translated -

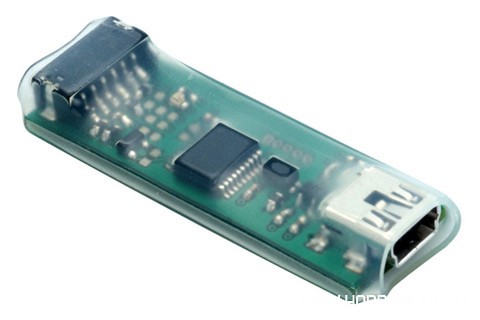

The LRP has presented the new iX8 speed controller for model cars in scale 1 / 8. The controller is compatible with LiPo battery packs 2S/6S with input voltages from 7.2 V to 22.2V with BEC 6A. The iX8 supports motors with brushless sensor and is designed for connection to PC for firmware upgrades. The USB adapter to connect to the computer is sold separately.








iX8 - 1/8 HIGH-TECH FREERIDE AND RACING SPEED CONTROL
The forerunner, LRP SPX8 Competition Brushless, already stoked the R/C Scene.
But the new one easily overmatches it by being a full-blooded 1/8 Brushless
speed control.
Especially developed for the higher voltages in 1/8 scale, LRP presents the all new iX8
as the ideal bash and race speed control. All the best in brushless racing technology
comes together in this speed control protected by its hard case to deal with the
rough and tough race and bash conditions. It is self-evident that any capacitors are
included in the speedo and the power connectors as well as the cooling fan connectors
are pluggable. The LRP iX8 is suited for the usage of 2S-6S LiPo batteries.
UNCOMPROMISING AND OUTSTANDING PERFORMANCE AT THE
HIGHEST LEVEL HAS A NAME - iX8!

█ 2S-6S LiPo operation:
Wide input voltage range (7.2V-22.2V) for versatile use, with powerful 6A
switching BEC.
Sensored Design:
█ Sensored technology for high precision and intelligent motor management
to achieve best drive and brake feel.
█ nefit from all the latest performance improvements and updates available
at www.LRP.cc !
█ pecial 1/8th power profiles for finest adjustments to all conditions and
motors. Including all team profiles.
█ Forward/Brake + Forward/Brake/Reverse:
Fully adjustable drive-modes with different brake/reverse adjustments.
█ Revolutionary Internal Temp Check System 3:
Allows you to read out the maximum internal temperature for each the
speedo and motor.
█ 100% pluggable connections:
No solder design - maximum convenience. Includes ready-to-use wires
for all connections.
█ Cut-off voltage / LVC adjustable

TECHNICAL DATA
-Order.No.: 80880
-Type: Forward/Brake/Reverse
-Motorlimit: None
-Voltage input: 7.2 – 22.2V (2S-6S LiPo)
-Ratet current: 600A/Phase
-BEC: 6.0V/6.0A
-Case size: 55 x 40 x 24mm

Alintidir : Hobbymedia
